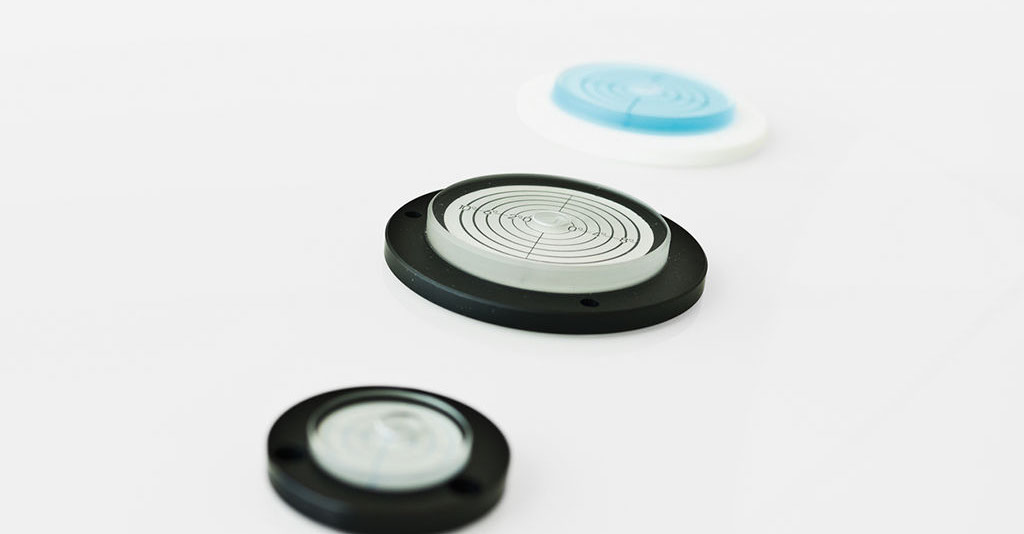

SPECIAL DESIGN

AIR LEVELS

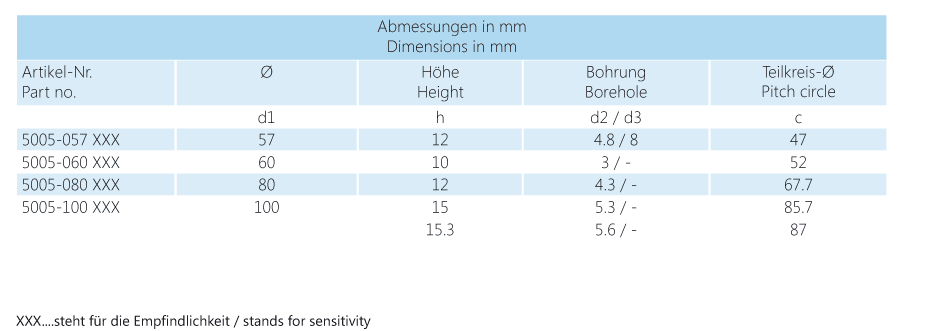

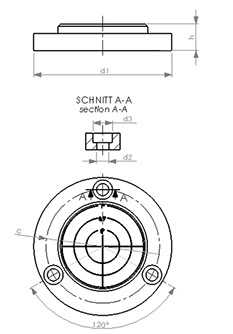

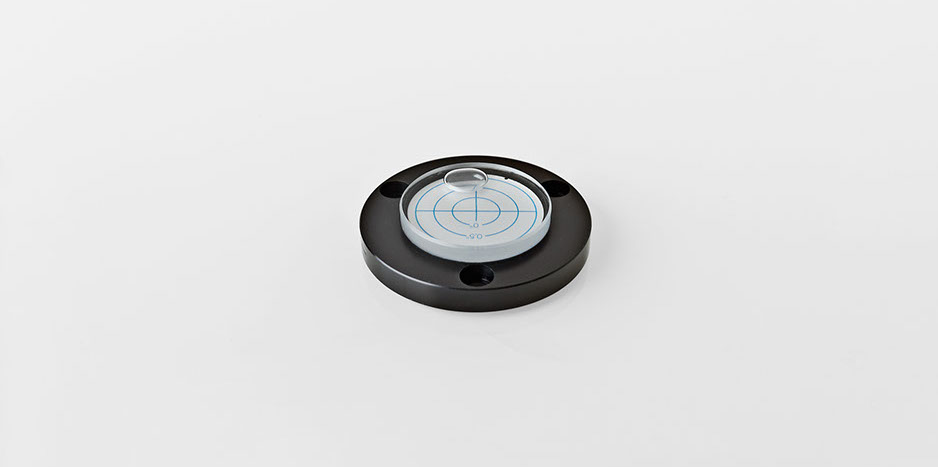

Model 5005

special design air level, screw-on

Model 5005 is available in different sizes and sensitivities.

Model 5005-057 has a flange made of black anodised aluminium. The vial is made of plastic. Models 5005-060, 5005-080 and 5005-100 are completely made of plastic.

Marking rings can be changed on customer request.

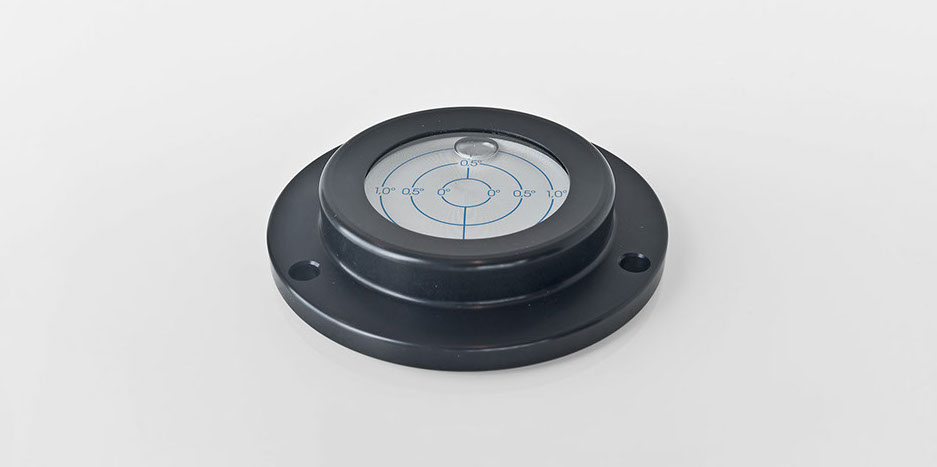

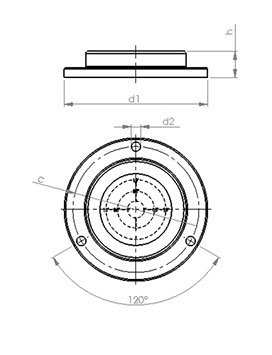

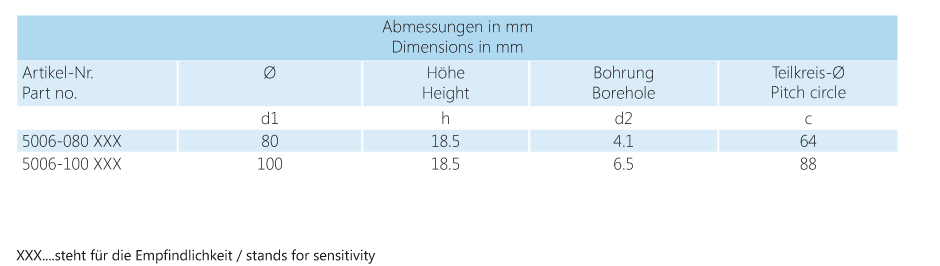

Model 5006

special design air level, screw-on

Model 5006 is available in different sensitivities.

The housing is made of black anodised aluminium with three boreholes.

Marking rings can be changed on customer request.

Model 5006 is set level with the bottom surface.

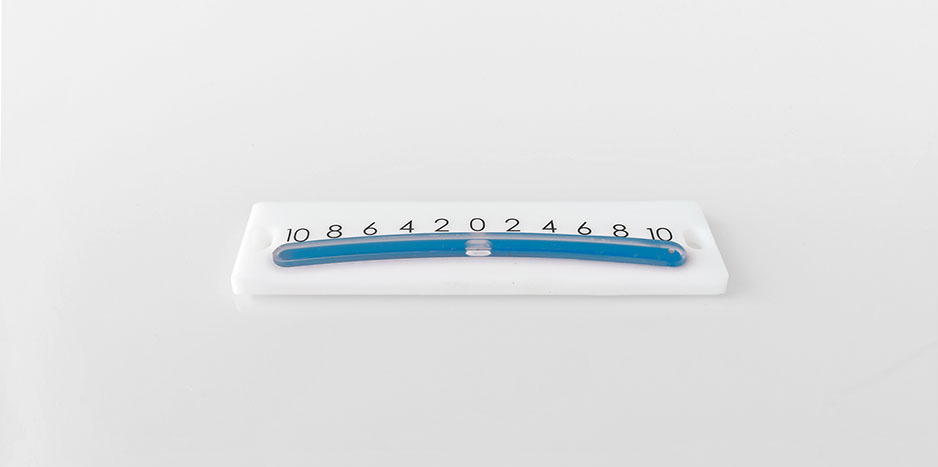

Model 5010

inclinometer

Model 5010 is made of acrylic.

The scale is ± 10°.

Inclinometers can be produced with different sensitivities or scales.

Different filling colours are also possible.

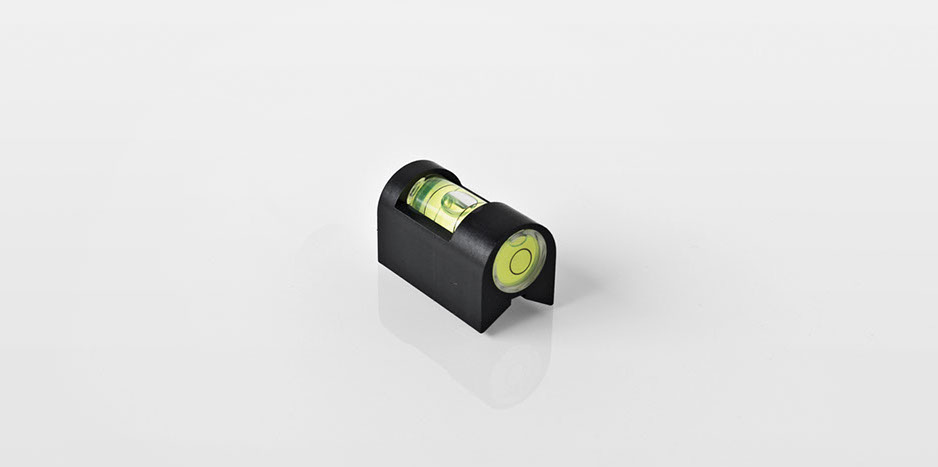

Model 5015-040

special design air level

Model 5015-040 has a sturdy housing made of black POM with a 120° prismatic base. The air level can be easily mounted on a drilling machine with a elastic strap.

The sensitivity is approx. 40´ – 50´.

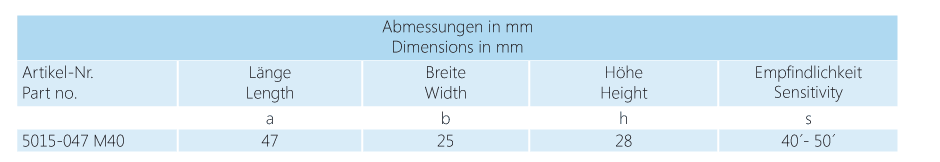

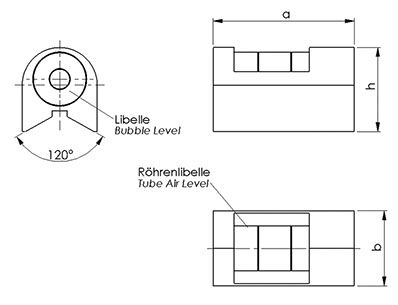

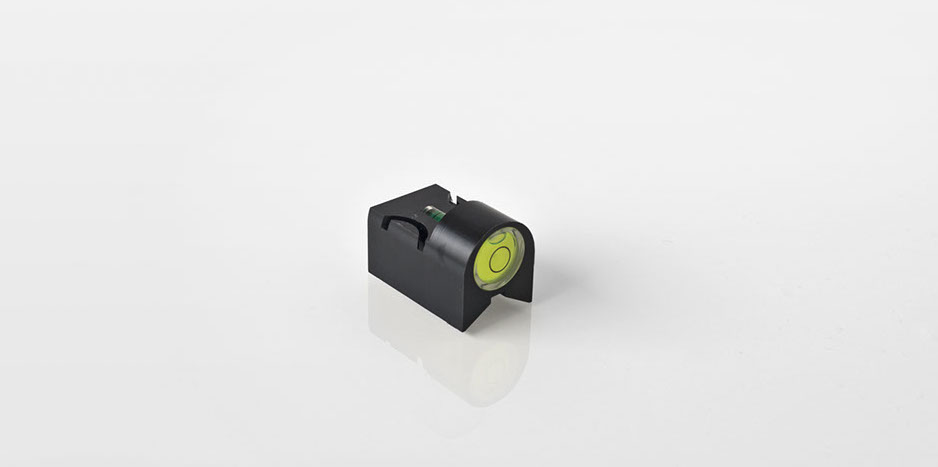

Model 5015-047

special design air level

Model 5015-047 has a sturdy housing made of black POM with a 120° prismatic base. The air level can be used to horizontally and vertically adjust rods/pegs.

The sensitivity is approx. 40´ – 50´.

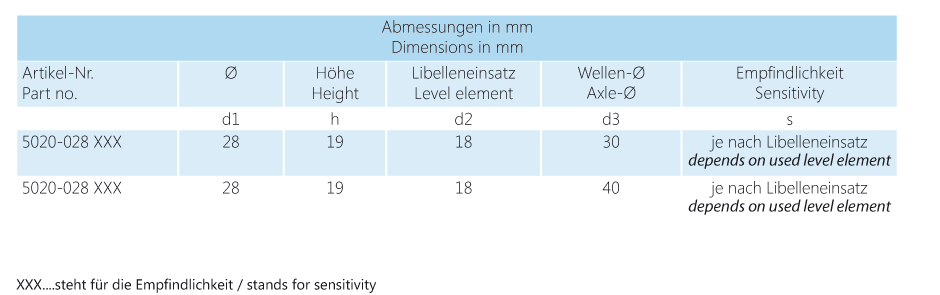

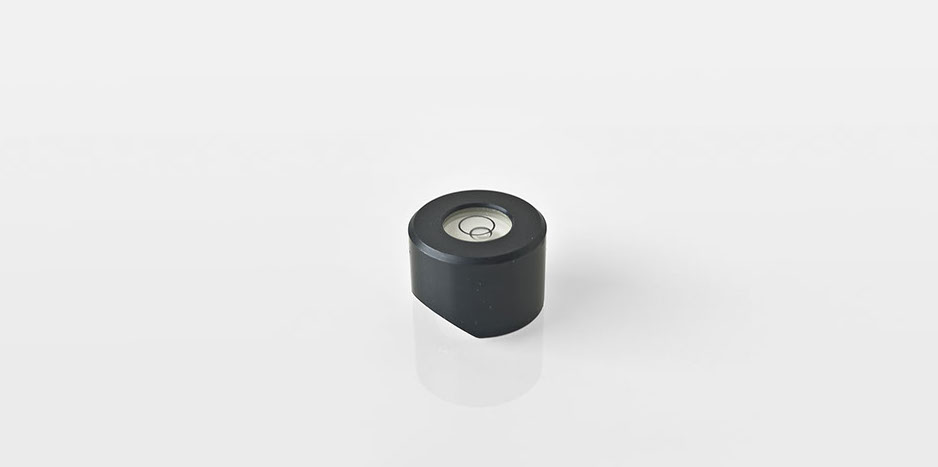

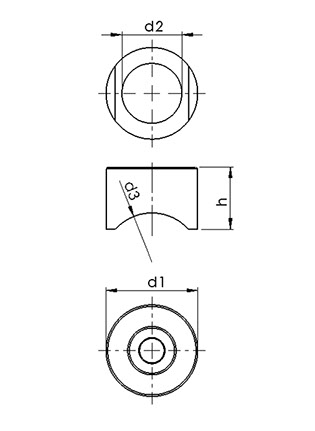

Model 5020

special design air level, can be glued to an axle

Model 5020 is available in two different styles. Ver­sion 1 is designed for an axle diameter of 30 mm, and version 2 for a diameter of 40 mm.

The sensitivity of the boxed circular air level is based on the air level element in use. You can find suitable air level elements in chapter “Air Level Elements”.
