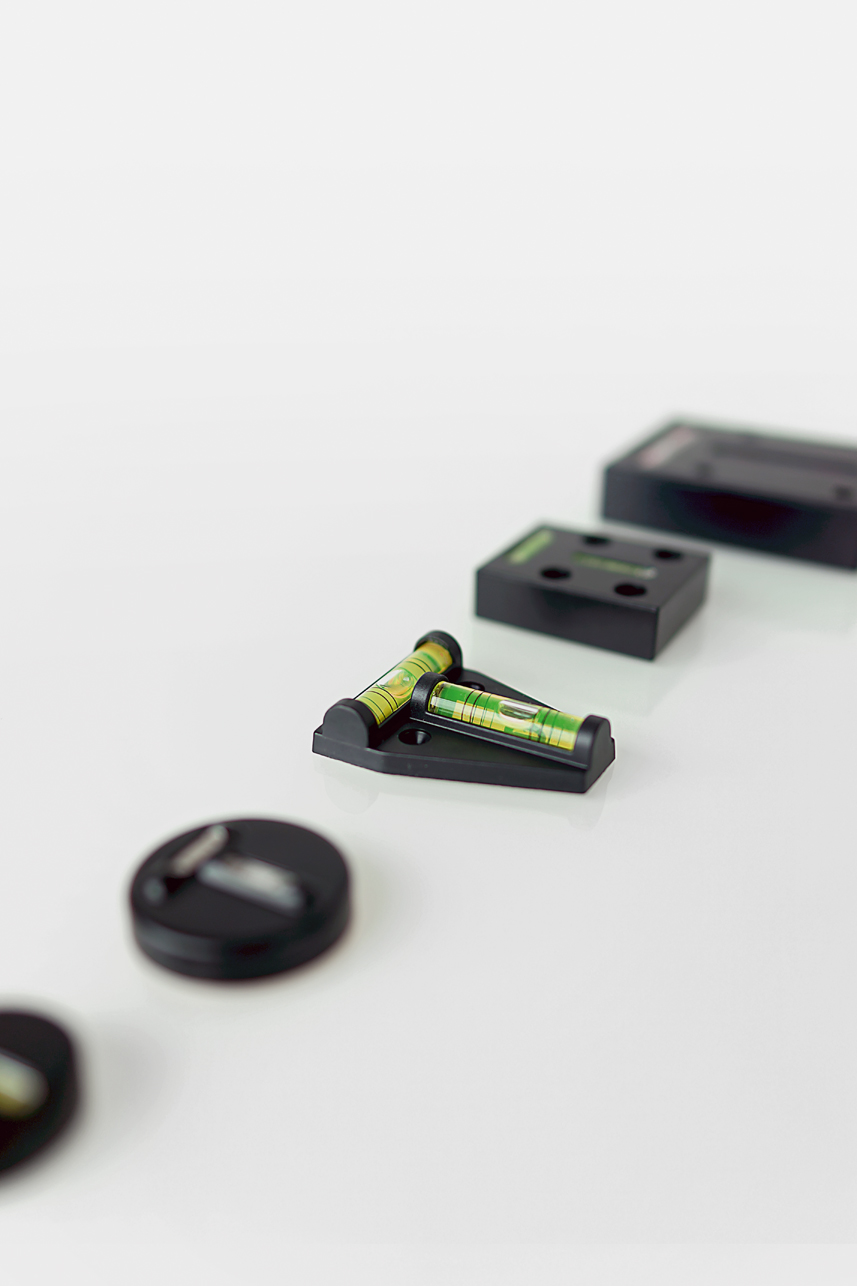

CROSS AIR LEVELS



















Cross air levels are used for two-dimensional ­alignment, e.g. for larger machines. A tube air level

is used for each dimension. The cross air level consists of two plastic or glass tube levels drilled out or precision ground to create a barrel-shaped interior. These are then installed in a single housing.





Our standard cross air levels are set on one reference surface. We also offer adjustable cross air levels which can be set using threaded holes.



MODEL
2001

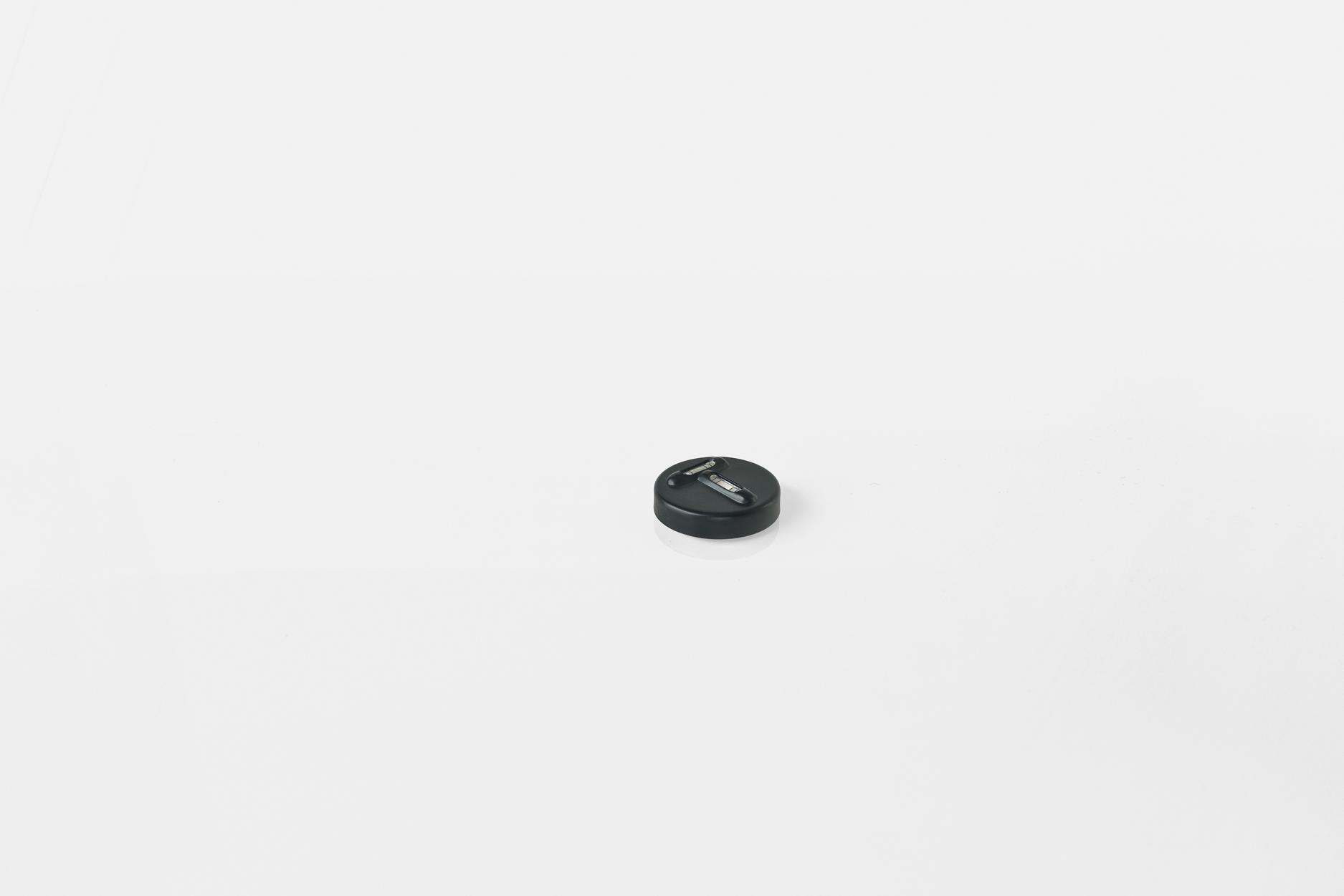

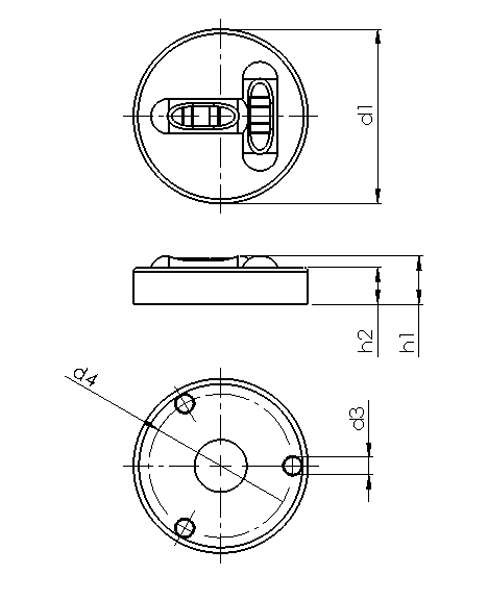

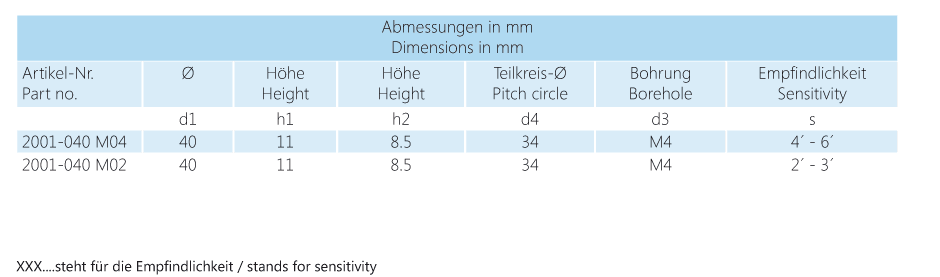

Model 2001
cross air level with bottom plate



The housing of the model 2001 is made of black

varnished brass. It has a bottom plate with 3 threaded holes.



Different sensitivities are available.





Model 2001 is pre-adjusted to the bottom area of

the housing.

Ordering Information

Request For Proposal

MODEL
2002

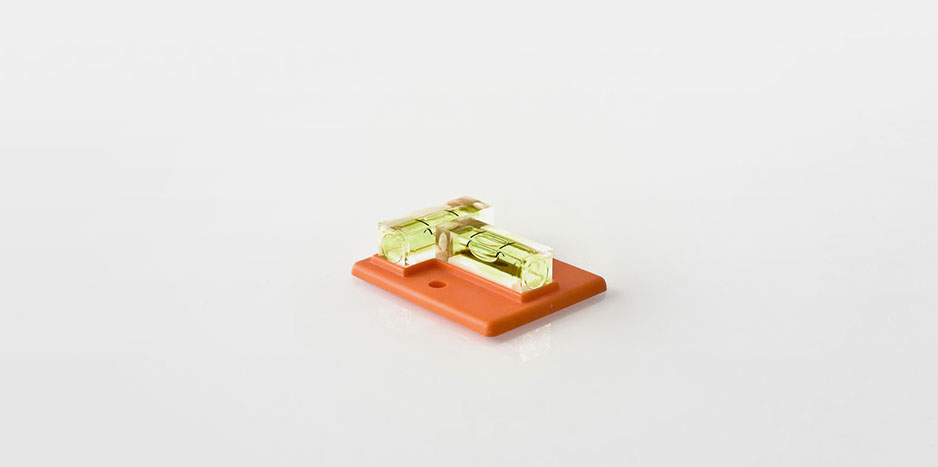

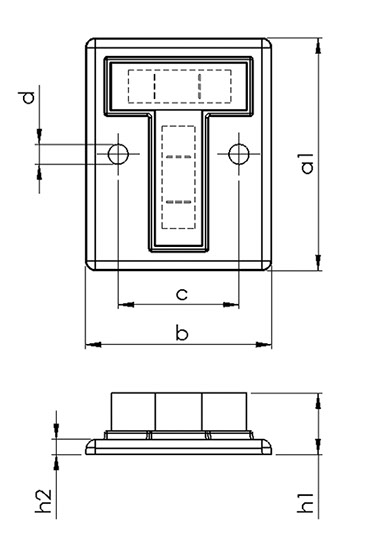

Model 2002 plastic cross level





Model 2002 is made entirely of plastic. The rectangular base plate has two boreholes for attaching.





The plastic levels, made of acrylic glass, are filled with yellow-green liquid and have a medium sensitivity of 40’ – 50’.



Model 2002 is not set





MIN. ORDER QUANTITY:  200 PCS.

Ordering Information

Request For Proposal

MODEL
2003

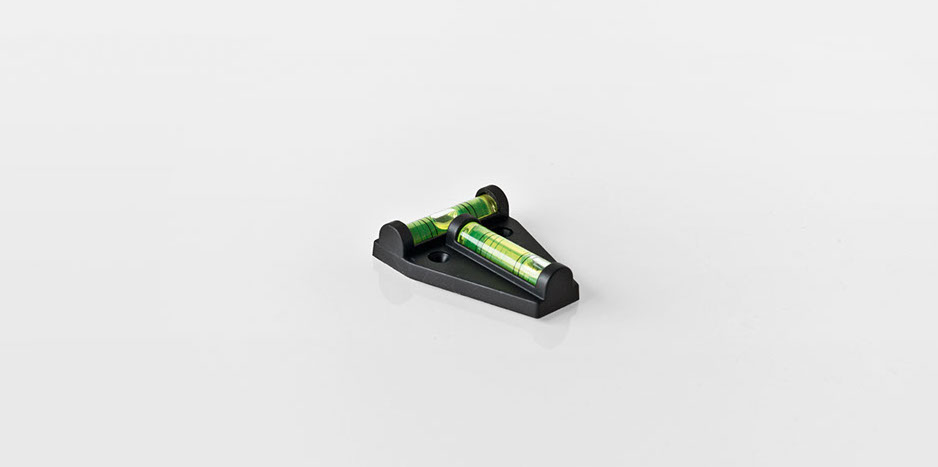

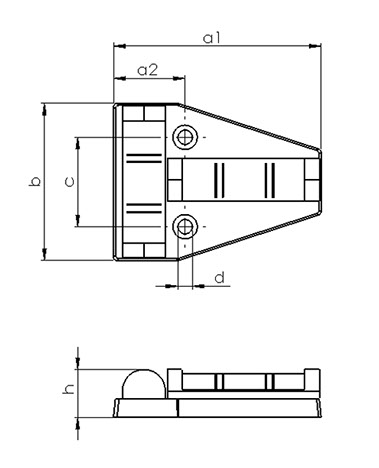

Model 2003
plastic cross level





Model 2003 is made entirely of plastic. The triangular base plate has two boreholes for attaching.





The plastic levels, made of acrylic glass, are filled with yellow-green liquid and have a medium sensitivity of 40’ – 50’.



Model 2003 is not set.

Ordering Information

Request For Proposal

MODEL
2004

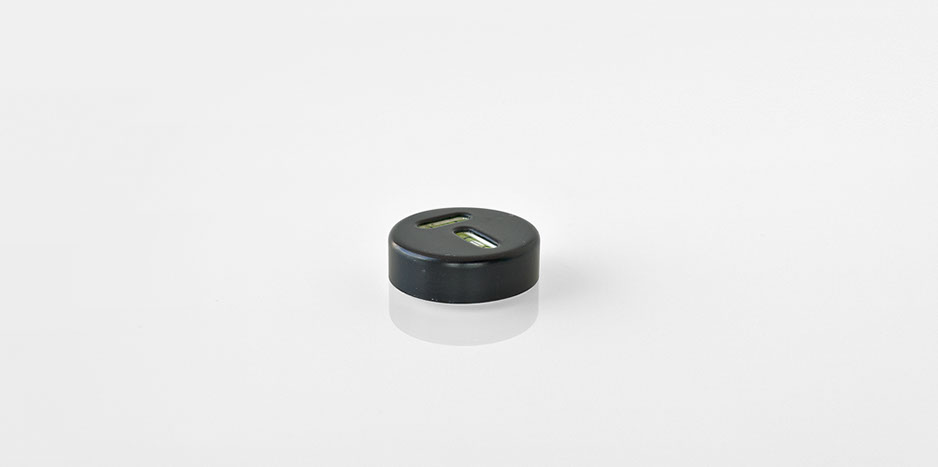

Model 2004
small cross air level



The housing of the model 2004 is made of black

varnished brass.



The small cross air level has basic sensitivity

of 40´ - 50´.





Model 2004 is pre-adjusted to the bottom edge of

the housing.





Ordering Information

Request For Proposal

MODEL
2005

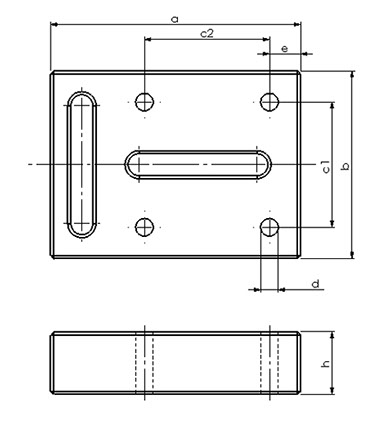

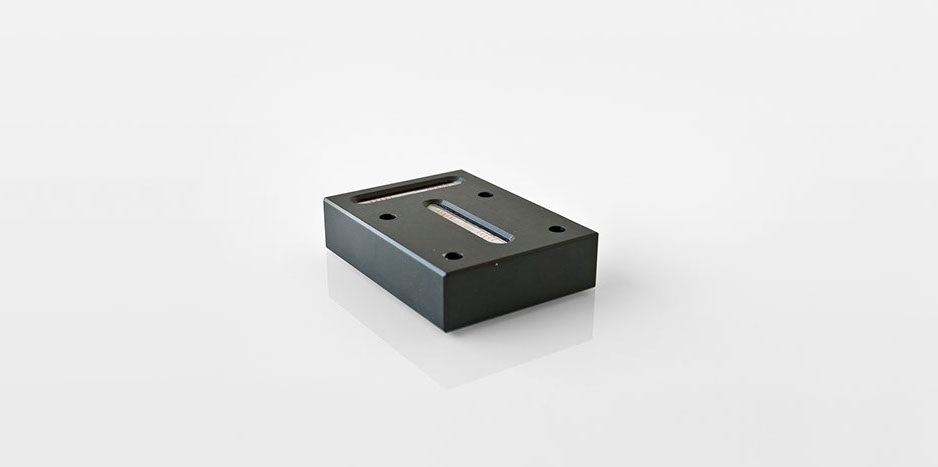

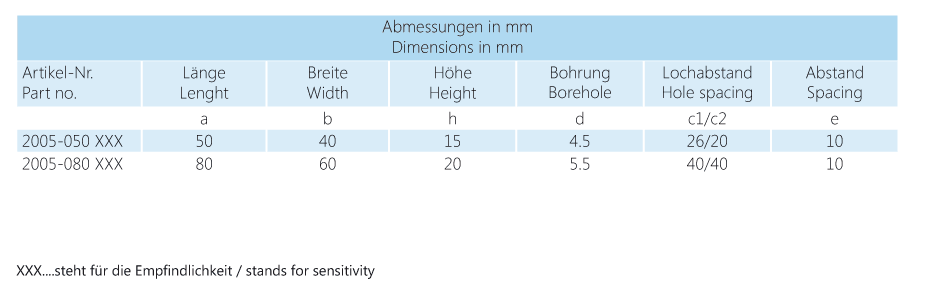

Model 2005
high-sensitivity cross air level





Model 2005 features a black anodised aluminium housing and is available in two sizes and different sensitivities. The sturdy housing allows for sensitivities of 10” (Model 2005-080) or 20” (Model 2005-050).







Model 2005 is set level to the bottom surface.





Ordering Information

Request For Proposal
